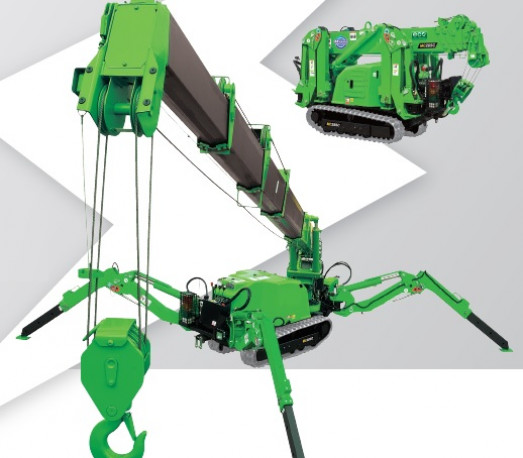

MAEDA Spider Cranes MC285CB-3
Crane Capacity | 2.82t x 1.4m |
Max. Working Radius | 8.205m x 0.15t |
Max. Lifting Height | 8.7m |
Max. Reach Below Ground | -10.1m (4 falls) |
Operating Speeds | same as MC285C-3 |
Battery System Type | Lithium-ion |
Battery System 5-hour Rate Capaciity | DC48V - 135 Ah |
Battery System Input Voltage / Current | Single Phase AC200V/16A (AC100V/14A) |
Battery System Charging Time (with AC-200V) | 80% 2h20m / 100% 3h30m |
Battery System Continous Operation Time | By Travelling: High Speed 2h15m |
Motor Rated Output | Variable 7.5kW AC30V at 2500min |
Dimensions | 2,800mm x 750mm x 1,470mm |
Machine Weight | 2,000kg |
