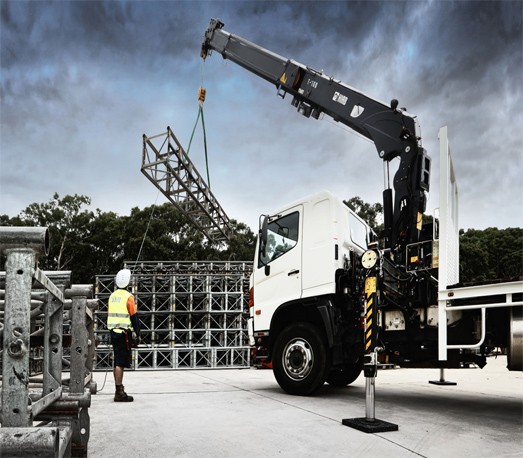

HIAB Telescopic Stiff Boom Cranes 160T-4

Crane capacity 15.5 tm
Max. working radius 12.8 m
Max. working height 14.0 m based on installtaion level
Recommended oil flow 56 liter / min
Max. working pressure 200 bar
Boom Type Hexagonal, 4 sections
Boom Lifting angle / speed 0 - 80 degres / 13 sec.
Boom Extension speed 11.4 m / 34 sec.
Hoist Type Spur gear reduction with mechanical brake
Hoist Lifting capacity 6500 kg at 4 falls
Hoist Hook speed Min, 9.5 m / min. - Max. 12 m / min. at 4 falls
Slewing Type Worm gear reduction with hydraulic brake
Slewing Angle 360 degress, continuous rotation
Slewing Speed 2.0 rpm
Outrigger span 5.7 m
Weight including outrigger 2650 kg, Approx.
